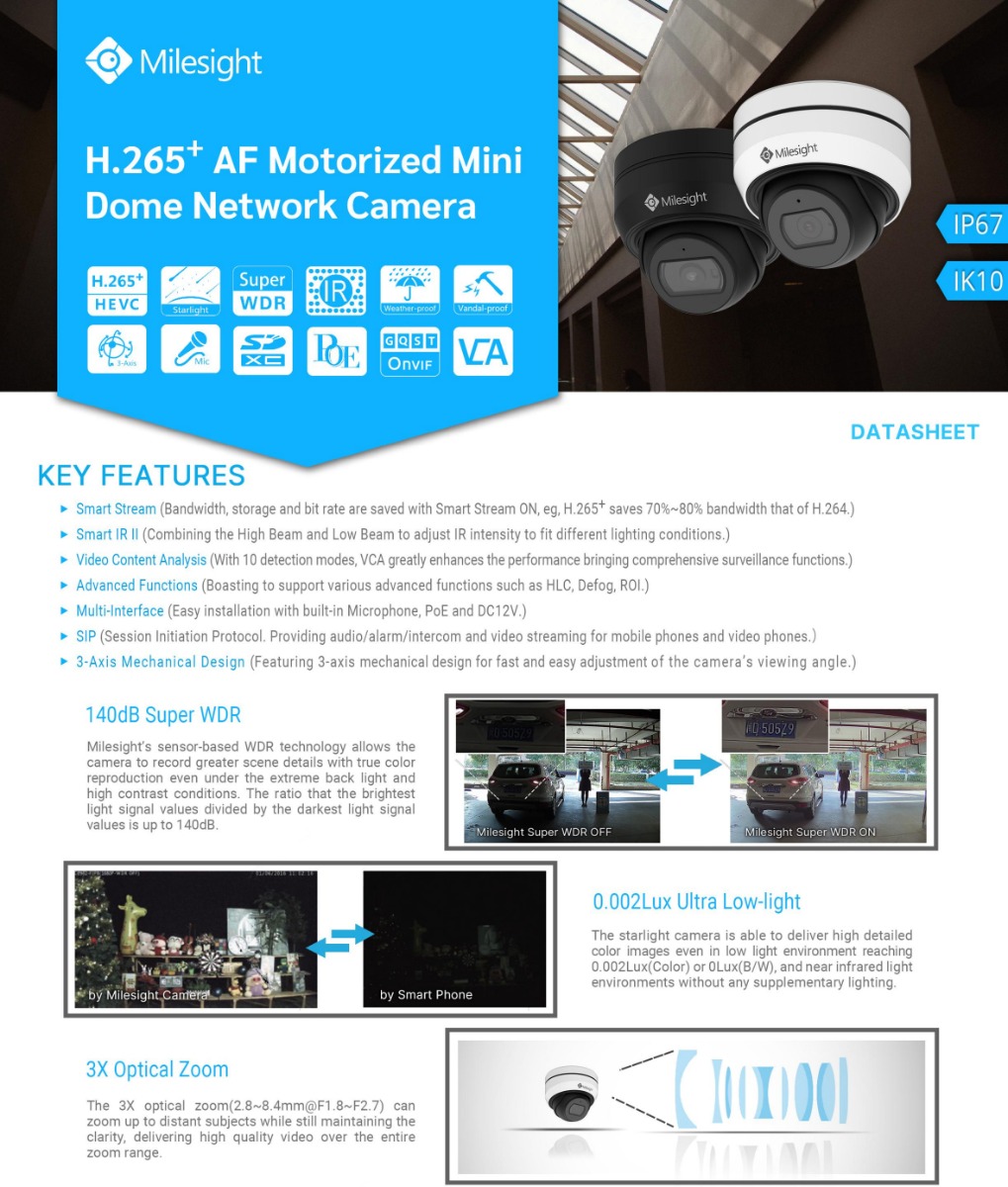

Milesight H.265+ AF Motorized Mini Dome

Milesight H.265+ AF Motorized Mini Dome

  Belangrijke kenmerken:

  Betrouwbaar A merk.
  Eenvoudige installatie.
  IP67 & IK10 gecertificeerd
  Super WDR
  3 Jaar garantie

Camera

Image Sensor1/2.8" Progressive Scan CMOS

Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on

WDR140dB Super WDR

Shutter Time1/100000s∼1s

Day/Night ModeDay/Night/Auto/Customize/Schedule

IR DistanceUp to 35m

S/N>55dB

Lens
Lens2.8∼8.4mm, 3X Optical Zoom

Field of ViewH111°∼H48°/D130°∼D55°/V60°∼V27°

Focus ControlAuto/Manual

Minimum Working Distance200∼500mm(Wide-Tele)

ApertureF1.8∼F2.7

Iris ControlAuto

Video
Max. Image Resolution1920x1080

Frame Rate30fps@(1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)

Privacy MaskingUp to 8 areas

ROIUp to 8 areas

Image SettingsSaturation/Brightness/Contrast/Sharpness

Web AccessSupport IE/Firefox/Chrome/Safari Browser

Audio
Audio CompressionG.711/AAC/G.722/G.726

Audio Sampling Rate8/16/32/44.1/48KHz

Audio Bit Rate16~256kbps

Two-way AudioSupport

Interface
Ethernet1*RJ45 10M/100M Ethernet Port

Audio InterfaceBuilt-in Microphone

Alarm I/O1/1(Multi-interface Version)

Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR

Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP SupportYes, Voice&Video-over-IP

Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)

Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)

Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

System CompatibilityONVIF Profile G & Q & S & T, API

General
Working Temperature-40℃∼60℃

Working Humidity0∼90%(Non-condensing)

Power SupplyPoE(802.3af)/DC 12V±10%

Power Consumption3.6W MAX, 6W MAX (With IR on)

Weather ProofUp to IP67-rated for weather-resistant performance

HousingVandal-proof IK10-rated metal housing

DimensionsΦ108mmX96.5mm

Weight620g

Warranty3/5 Years
